beam coupling

Most couplings can be divided into one of two types, rigid and flexible. Rigid couplings are used for applications that require proper alignment, while flexible couplings, such as beam couplings, are suitable for applications where there is some acceptable misalignment.

Beam couplings, sometimes called screw couplings, are made from a piece of material that is made flexible by removing material in a helical pattern along its length. Like all couplings, the purpose of beam couplings is to transfer torque between two shafts, but unlike rigid couplings, beam couplings can accommodate angular misalignment, parallel misalignment of one shaft relative to the other even axial movement. Beam couplings also differ from other coupling types in that their one-piece construction prevents the backlash typically encountered with couplings made of multiple parts.

Stainless Disc Flexible Beam Coupling Encoder Coupling

Contact Us

As one of the leading half coupling manufacturers, suppliers, and exporters of products, We offer half coupling and many other products.

Please contact us for details.

Mail:[email protected]

Manufacturer supplier exporter of half coupling

Overview
Quick Details
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company, cnc machine, 3d printer, power transmission, automation, robotics
Customized support:  OEM, ODM, OBM
Structure:  Disc
Flexible or Rigid:  Flexible
Standard or Nonstandard:  Standard
Material:  7075-aluminium alloy , SUS 304 stainless steel shrapnel
Place of Origin:  Zhejiang, China
color:  sliver white
Certification:  ISO9001:2008
Axle housing styple:  A
Max torque:  3.0N.m
Rated torque:  1.5N.m
Inner bore(d1 ,d2):  5~10mm
Length:  35.5mm
Allowable speed:  10000r/min
net weight:35g
Product Description

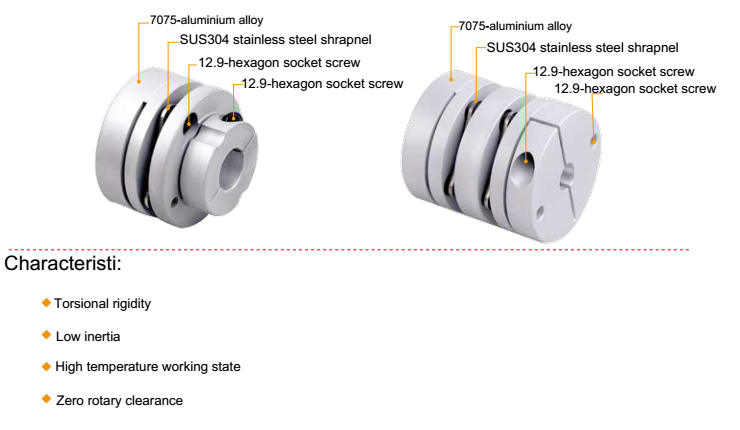

Stainless Disc Flexible Beam Coupling Encoder Coupling

As one of the leading half coupling manufacturers, mechanical product suppliers and exporters, we supply half coupling and many other products for cluster half coupling. half coupling, half coupling Manufacturer, half coupling Supplier, half coupling Exporter, half coupling Seller, half coupling Made In China, Wholesale half coupling, Buy half coupling, Customize half coupling – Find half coupling Manufacturers and Suppliers. Choose from quality driveshaft manufacturers, suppliers and exporters on half-coupling.com.

Beam Coupling

Beam couplings connect rotating shafts and accommodate axial movement and misalignment of parallel or angular shafts. They feature a low-maintenance, one-piece design that provides greater misalignment capabilities. Beam couplings are often used in low torque applications that do not require high operating speeds, although some beam couplings can handle high torque applications.

There are several types of beam couplings, including flexible, slit, and rigid. Each has unique features and capabilities to address issues such as misalignment and backlash in motion control applications. Common uses for beam couplings include encoders, pumps, and a range of other light machinery applications. When choosing a beam coupling, it is important to pay attention to size, torque, and speed ratings to ensure it will meet your application needs.

Request Custom or Modified Product
